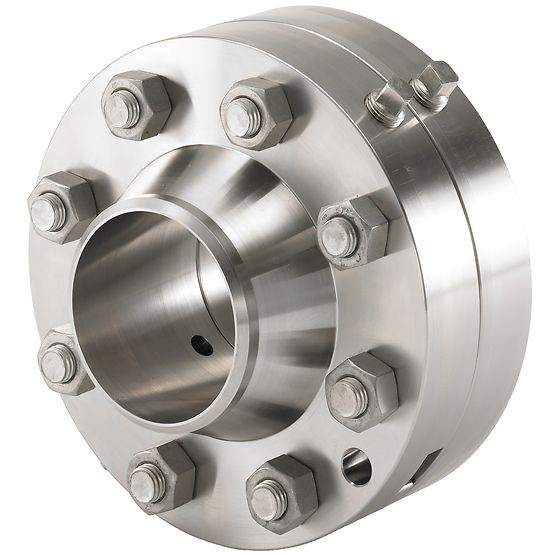

The Rosemount 1496 Orifice Flange Union holds orifice plates in place for reliable flow measurement. This flange union is designed with a threaded tap connection (180-degrees apart) and engineered to withstand high temperatures and pressures of up to ANSI Class 2500#. These flange unions do not require on-site drilling and come with a complete assembly of all necessary hardware, including studs, nuts, jack screws, gaskets and pipe plugs
-
Manufacturer: Rosemount
-
Valve Type: Instrumentation
-
Sub-Type: Primary Elements
- Positions orifice plates appropriately for reliable flow and accurate measurement
- Threaded tap connection does not require on-site drilling of flange taps for an easy-to-install solution
- Supplied with all necessary hardware for straightforward installation
- Available in line sizes up to 24 in. (600 mm) or custom line sizes
- Adaptable flange union withstands high temperatures and pressures of up to ANSI Class 2500#
- Meets ASME B16.36 and DIN 19214 part 1 specifications
