Carbon Steel and Nodular Steel Strainers
Enquire about this Product

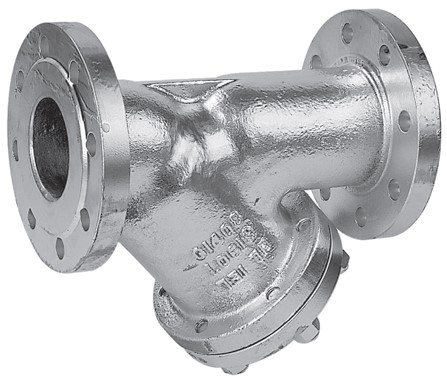

Carbon Steel and Nodular Steel Strainers, Sediment collecting strainers 'Y' type - PN40
- Manufacturer:
Other
- Valve Type:
Valves & Accessories
- Sub-Type:
"Y" Type Strainer
- PN 40 - Manufactured in Carbon Steel
- PN 40 Manufactured in Stainless Steel
- PN 16 (DN15-100) / PN10 (DN 125-200) - Manufactured in AISI 316 Stainless with Electro-welded Flanges
| Dimensions (mm) |
|
|
|
|
|
|
|
|
|
|
|
|
| DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
| D (mm) |
95 |
105 |
115 |
140 |
150 |
165 |
185 |
200 |
235 |
270 |
300 |
375 |
| L (mm) |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
| H (mm) |
75 |
75 |
100 |
105 |
120 |
135 |
150 |
175 |
230 |
270 |
320 |
380 |
